Ranch house Scarlett is a medium size single story home for a five member family to provide enough privacy. Kids have not only their bedrooms, but also a common LEISURE room, separated from the main living room.

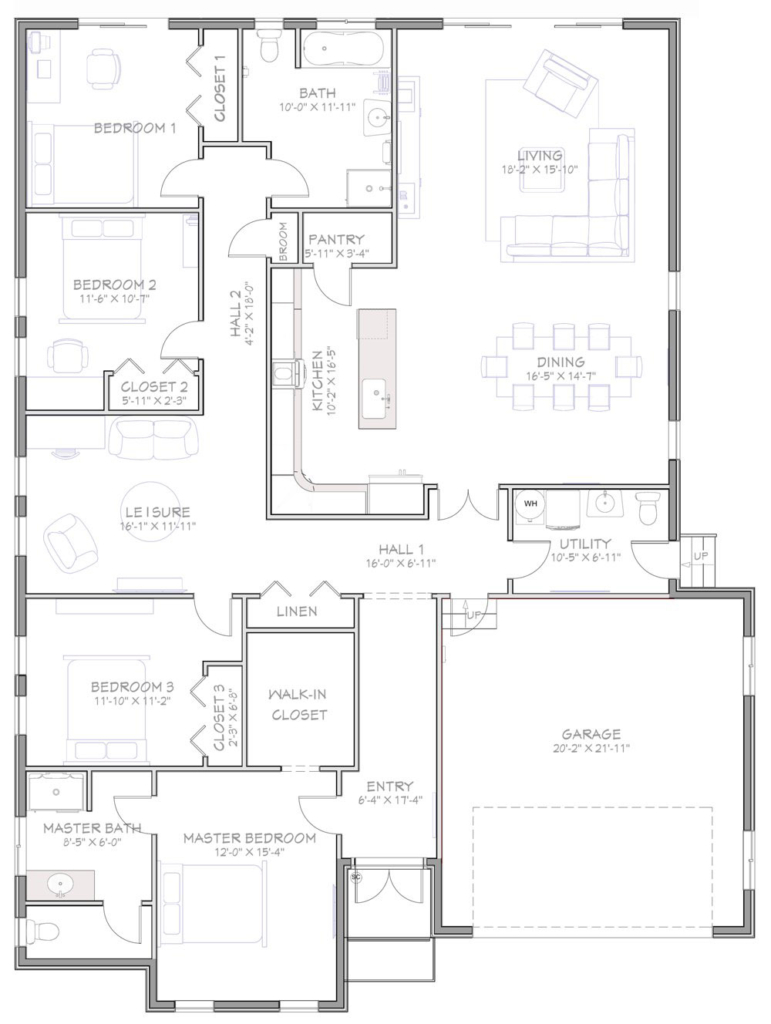

▪ Detailed floor plan
▪ Exterior elevations
▪ Foundation plan
▪ Details and cross-sections
▪ Walls, floor and informal roof framing
▪ Electrical plan
▪ Kitchen plan

PDF Print size: 24″ × 36″ sheets
The plans will be delivered as a printable digital PDF download. We do not post printed plans.
HVAC and plumbing plans are not included. HVAC plans have to be designed by a specialist and the configuration also depends on the location of the house.

Purchasers have been urged to consult their local building official for particular ordinance requirements, and encouraged to review the plans with a local engineer of their choosing. No engineering or architectural stamps have been included. Consult a qualified licensed builder / contractor familiar with your local building codes before applying for approval. The Plans are NOT intended as a DIY project — you must hire a contractor.

The plans are for your personal use only. Do not redistribute PDF files or images. Do not resell.
